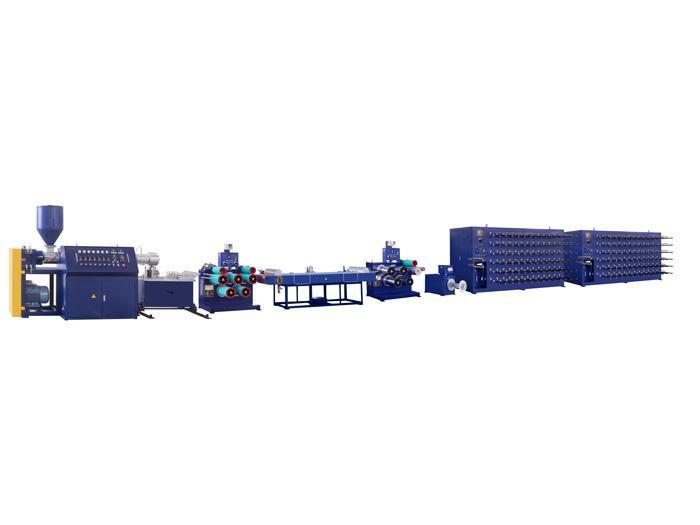

Monofilament extruding line for rope&net

Views: 251005/30/2013

Detailed Product Description

★Using metering pump to control the flow accurately
★The cooling water tank has independent heating system
★New type of the hot water tank keeps temperature stable and saves energy
★All the take-off units use casting frame to keep bevel wheel running smoothly

Main technical parameter:

Item	M50×30-450 monofilament extruding line for rope&net
Material	or bottle flakes
Dia. of monofilament	Ø0.10-Ø0.35mm
Dia. of screw	Ø65mm
Ratio of L/D	30:1
Heating type of spinneret	150 pcs
Heating type of spinneret	electric-heating
Stretching mode	hot water
Qty. of stretching unit	2
System installed capacity	57KW
Normal operational capacity	35KW
Overall size(L×W×H)	23000×1900×1850mm
Total weight	15T
